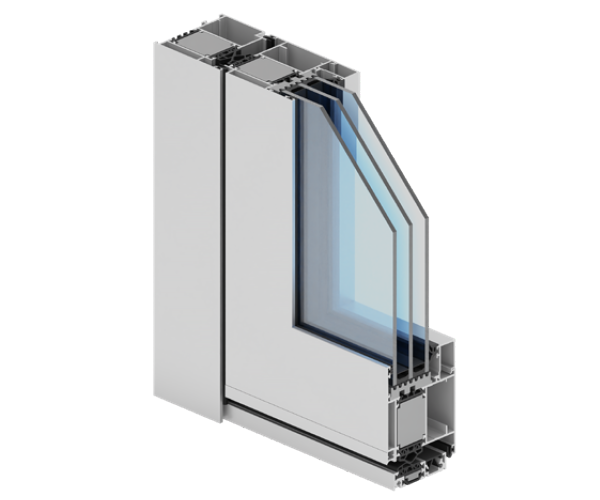

three-chamber window system used to construct windows with increased thermal insulation performance

thermal parameters of the Genesis 75 window meet the requirements applicable as of 2021 (Uw starting from 0.90)

the Genesis 75 window system is based on frame sections with a depth of 75 mm

wide range of sections/profiles offered as part of the Genesis 75 system, enabling the design of modern windows that feature high functionality

the Genesis 75 system uses modern insulating materials that are a market novelty; in addition to the classic window central gasket, an additional thermal gasket has been designed to achieve very high window tightness (air infiltration, watertightness)

possible selection of different profile finishes (also renovation profiles)

the system makes it possible to construct all-glass 90˚ corner connection

the Genesis 75 window system sets a new standard for window insulation, while maintaining the highest ergonomics of use and modern profile aesthetics

the system makes it possible to construct all-glass 90˚ corner connection

available system options:
– Genesis OUT – outswing window
– Genesis SU – concealed sash option

Genesis 75 is a system intended to design window structures in public buildings as well as in single or multi-family buildings

possible to install the Flyscreen and Insect System (mosquito net systems)

wide range of colours – RAL palette (Qualicoat 1518), textured colours, Aliplast Wood Colour Effect – wood-like colours, Aliplast Loft View – colours imitating stone surfaces (Qualideco PL-0001), anodised colour (Qualanod 1808), bi-colour

System Genesis OUT is designed for designing tilt out and turn out windows

Genesis OUT features a faced internal Surface of the frame and the sash

system Genesis OUT features faced internal surface of the frame and the sash

turn out windows can be fitted with two types of hinges: rotating hinges or scissor hinge; window hardware used allows tilting the top or the bottom of the window outwards; option of turn out window with the limit stop

maximum dimensions and weights of structures in GN OUT system:
– tilt out windows: minimum width and height of sash 500 mm,
maximum width and height of sash 2000 mm, maximum weight
of sash 100 kg for tilt out windows
– turn out windows: minimum width and height of sash 500 mm,
maximum width of sash 1500 mm, height of sash 3000 mm,
maximum weight of sash 120 kg for turn out windows

The triple-chamber window system with thermal insulation featuring a specially designed frame shape covering the entire height of the sash profile.

A wide range of glazing allows the use of all types of single and double-chamber, acoustic insulated or anti-burglary window panes.

There are 2 options of movable posts: standard and a narrow post for greater light passage.

Profile drainage available in two options: traditional and concealed.

The concealed sash system is the solution preferred by designers, enabling „covering of windows” in aluminium-glass structures. With the use of this type of opening solution, openable and fixed lites look identical from the outside

Low threshold option available for single and double, rectangular balcony doors (structures with the use of dedicated profiles).

a window and door system with thermal insulation, featuring a smooth and narrow profile line

a specific profile shape, which makes the structure look like steel profiles, provides the structure with a modern industrial character

Steel look 1000 is a system standing out on the market due to its unique design thermal insulation (Uf) from 1,85 W/m2K

available system options: Max Light DESIGN, Max Light INVISIBLE, Max Light MODERN, Max Light STEEL

a window system with thermal insulation, featuring a smooth and slim profile line

the specific shape of the profiles (resembling steel profiles) gives the structure a modern industrial character

system application: fixed windows, opening windows: single- or double-sash windows with tilting, opened inwards

the Max Light DESIGN system is characterised by modern design

system featuring increased thermal insulation, for designing vertical sliding structures;

system equipped with a profile-concealed drive supplied by a reputable company, for the sashes to be moved vertically (the drive also provides the tilting function to make it easier to clean the outside of the glazing);

available infill thicknesses: 24 mm and 28 mm;

frame depth 126 mm

system used in the design of residential and public buildings (schools, hospitals, banks) as well as in renovation projects; it can be used as a pass-through window in offices, canteens, receptions, banks;
