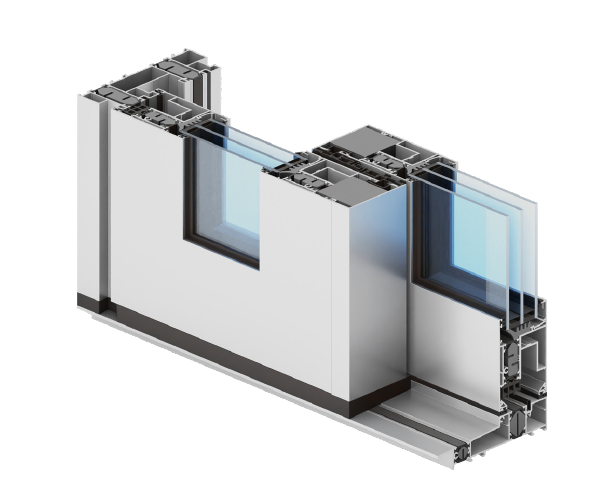

a system featuring improved thermal performance, used to design lift-sliding structures

the Ultraglide low-threshold system is a solution to improve building accessibility for disabled people; the low-threshold option prevents edge offset at the door-floor contact and enables threshold-floor flushing

possible structure variants: 2-, 4-component based on a two-rail frame

there is possibility of use Insect System (fly screens are a practical and an extremely functional protection against insects)

a wide range of colours – RAL palette (Qualicoat 1518), texture colours, Aliplast Wood Colour Effect (wood-like colours), Aliplast Loft View – colours imitating stone surfaces (Qualideco PL-0001), anodised colour (Qualanod 1808), bi-colour

a modern system with increased thermal insulation performance used to design lift-and-slide structures

frame depth: 200 mm, sash depth = 90 mm (as the equivalent of the installation depth for the Genesis 90 window system)

profiles equipped with thermal breaks in sizes not previously used in Aliplast systems:
– width of the thermal break in the frame: 80 mm
– width of the sash thermal break: 65 mm

the INFERNO system uses a unique solution of doubling the closing gaskets, improving the tightness, as well as acoustic and thermal insulation

a wide range of colours – RAL palette (Qualicoat 1518), texture colours, Aliplast Wood Colour Effect (wood-like colours), Aliplast Loft View – colours imitating stone surfaces (Qualideco PL-0001), anodised colour (Qualanod 1808), bi-colour

the system allows the use of large glazing, which provides excellent interior lighting and facilitates their arrangement, while maintaining the stability, functionality and lightness of the structure

INFERNO MONORAIL is designed as a double-track system, with the possibility of expanding the number of tracks

Available INFERNO MONORAIL with one lift-and-slide sash, the other part is glazed within the frame

possible to glaze from the outside – beneficial when using large and heavy glazing, which is easier to install from the outside of the building

the INFERNO MONORAIL system is adapted to the latest requirements in the area of thermal insulation, aesthetics and safety

INFERNO lift-and-slide structures are designed for use in residential buildings, mainly individual and public buildings

the system allows the use of large glazing, which provides excellent interior lighting and facilitates their arrangement, while maintaining the stability, functionality and lightness of the structure

With to the unification of the sash depth with the Genesis 90 system, in the fixed parts of the INFERNO MONORAIL system, the Genesis 90 turn-only and turn-and-tilt window sashes can be used
